Teltonika RUT906 (TELTONIKARUT906000000)

Teltonika RUT906 (TELTONIKARUT906000000) - Opis

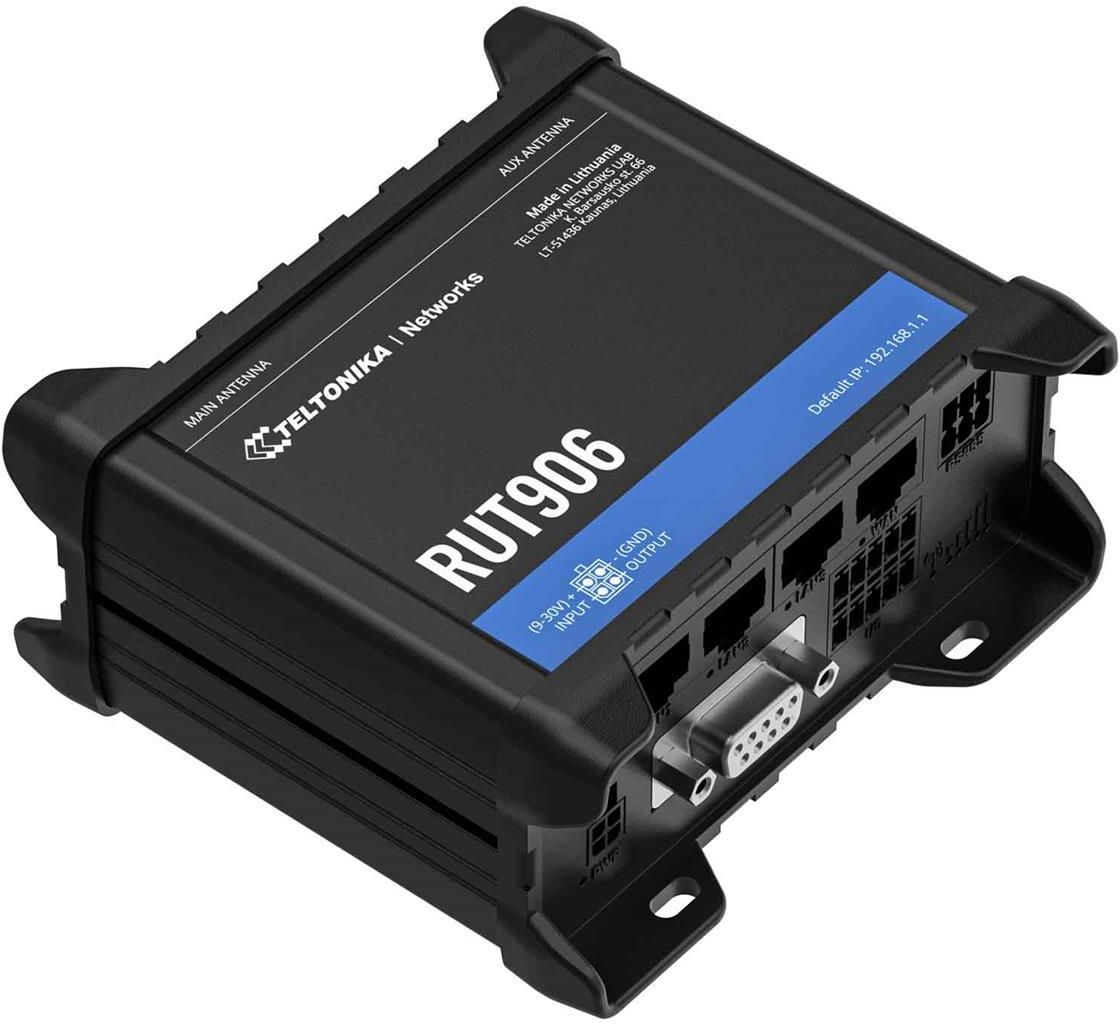

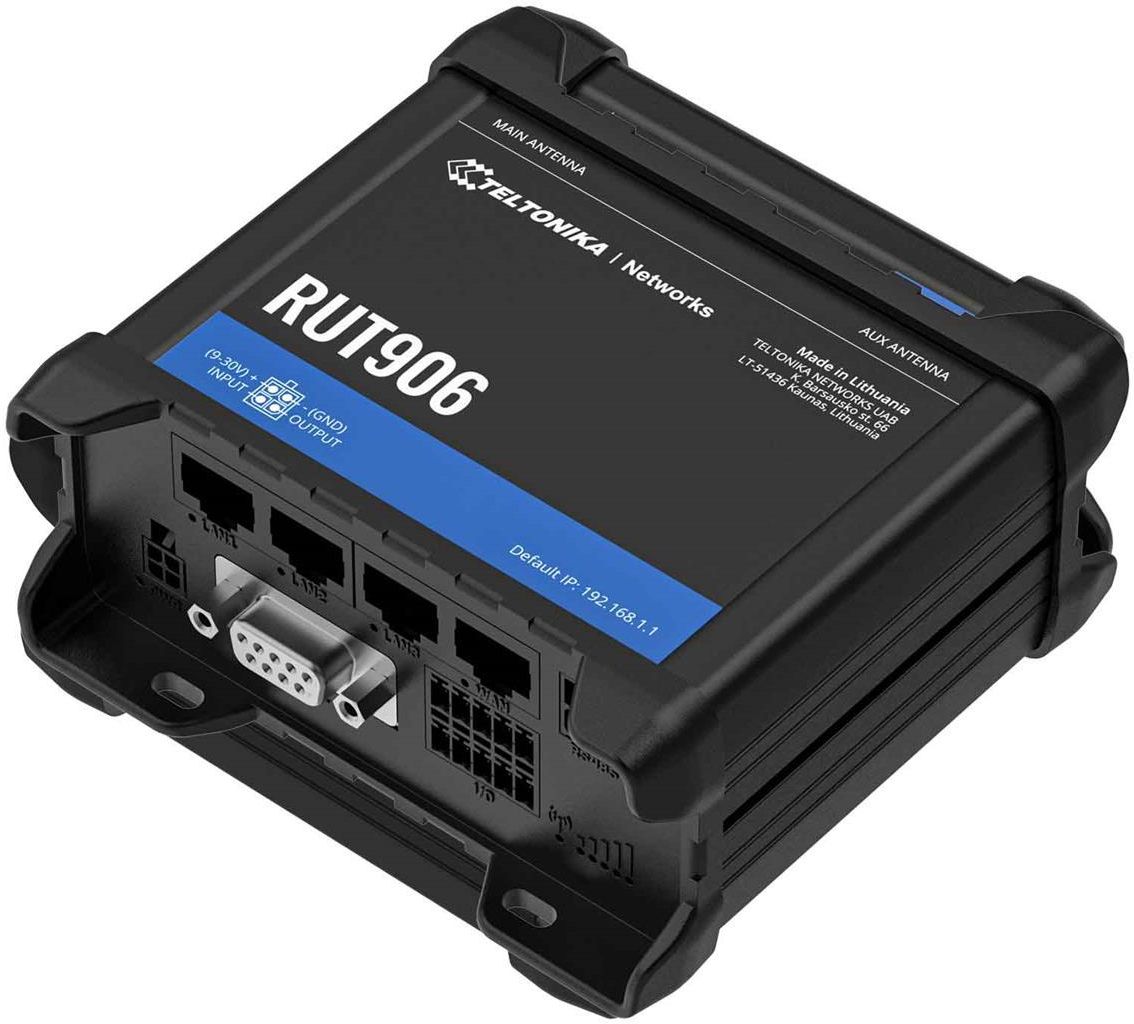

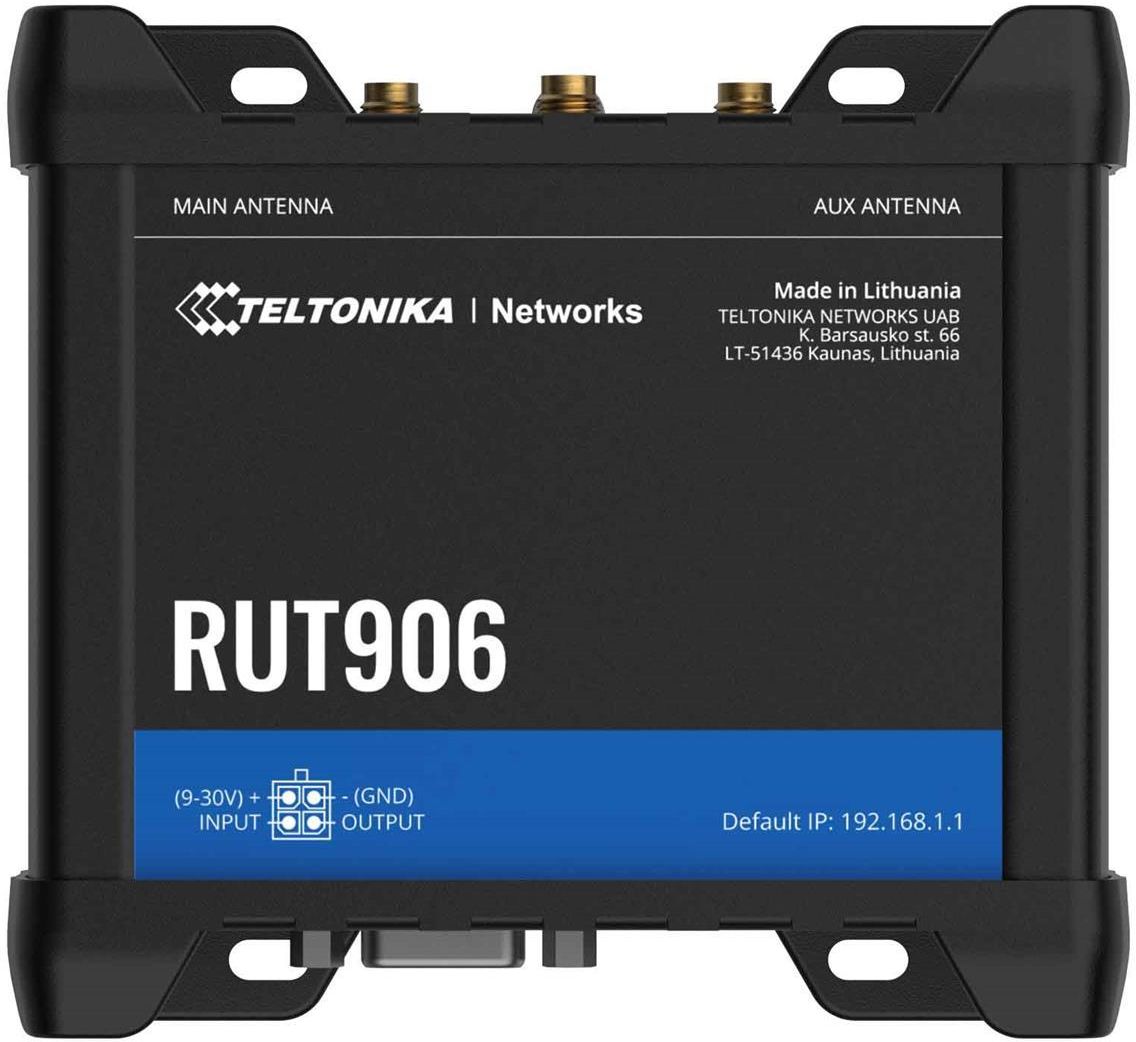

Teltonika RUT906 (RUT906000000) to kompaktowy przemysłowy router 4G (LTE), wyposażony w 4x porty Fast Ethernet, WiFi, Dual-SIM, GPS, blok złączy I/O, RS232/RS485 i oprogramowanie RutOS dla zaawansowanych rozwiązań sieciowych.

RUT906 to router komórkowy 4G do zastosowań przemysłowych IoT, obsługujący interfejsy szeregowe RS232 i RS485, MQTT, BACnet, I/O, Ethernet i inne. Ten router komórkowy jest wyposażony w GNSS i funkcje awaryjne, takie jak Dual SIM, automatyczne przełączanie awaryjne i zapasowa sieć WAN.

Teltonika RUT906 jest przeznaczony do profesjonalnych zastosowań przemysłowych dzięki dużym możliwościom dostosowania, funkcjom bezpieczeństwa, protokołom przemysłowym i kompatybilności z systemem zdalnego zarządzania (RMS) firmy Teltonika Networks.

Zawartość opakowania:

• Router RUT906
• Zasilacz 9 W
• 2x anteny LTE (obrotowe, SMA męskie)
• 2x anteny Wi-Fi (obrotowe, SMA męskie)
• 1x antena GNSS (samoprzylepna, SMA męskie, kabel 3 m)
• Blok złącza RS485
• Blok złącza I/O
• Kabel Ethernet 1,5 m
• Zestaw adaptera SIM
• QSG (przewodnik szybkiego startu)
• Pudełko do pakowania

Najważniejsze cechy:

• Łączność 4G LTE (kat. 4), 3G, 2G
• Interfejsy szeregowe (RS232 i RS485), MQTT, BACnet, OPC UA, wejścia/wyjścia, Ethernet i inne
• Automatyczne przełączanie awaryjne, zapasowa sieć WAN i inne scenariusze przełączania
• Bezprzewodowy punkt dostępowy z funkcją Hotspot
• GNSS - NTRIP, usługi lokalizacyjne i synchronizacja (...) więcej czasu
• Dual SIM - znacznie obniża koszty roamingu
• 4x porty Fast Ethernet z funkcjonalnością VLAN
• System zdalnego zarządzania Teltonika - RMS

MOBILEMobile module
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

Bridge
Direct connection (bridge) between mobile ISP and device on LAN

Passthrough
Router assigns its mobile WAN IP address to another device on LAN

APN
Auto APN

SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Black/White list
Operator black/white list

3GPP Release
Release 10/11 depending on the hardware version

Band management
Band lock, Used band status display

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

WIRELESSWireless
IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Fast roaming (802.11r), Relayd

WiFi security
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

SSID/ESSID
ESSID stealth mode

WiFi users
Up to 100 simultaneous connections

Wireless Hotspot
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

ETHERNETWAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

LAN
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORKRouting
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall
Port forward, traffic rules, custom rules

DHCP
Static and dynamic IP allocation, DHCP Relay

QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS
Supported 25 service providers, others can be configured manually

Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing
Balance Internet traffic over multiple WAN connections

Hotspot
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

SSHFS
Possibility to mount remote file system via SSH protocol

SECURITYAuthentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

WiFi security
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation

VLAN
Port and tag-based VLAN separation

Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control
Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPNOpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE
GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

SSTP
SSTP client instance support

ZeroTier
ZeroTier VPN client support

DMVPN
Method of building scalable IPsec VPNs

WireGuard
WireGuard VPN client and server support

Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNETSupported connection types
RS485, TCP

Supported modes
Router

OPC UASupported modes
Client, Server (planned)

Supported connection types
TCP

DNP3Supported modes
TCP Station, Outstation

Supported connection types
RS232, RS485, TCP, USB

MODBUSSupported modes
Server, Client

Supported connection types
RS232, RS485, TCP, USB

Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAYMQTT gateway
Allows sending commands and receiving data from MODBUS Master through MQTT broker

DATA TO SERVERProtocol
HTTP(S), MQTT, Azure MQTT, Kinesis

MONITORING & MANAGEMENTWEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

FOTA
Firmware update from server, automatic notification

SSH
SSH (v1, v2)

SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off

TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT
MQTT Broker, MQTT publisher

SNMP
SNMP (v1, v2, v3), SNMP trap

JSON-RPC
Management API over HTTP/HTTPS

MODBUS
MODBUS TCP status/control

RMS
Teltonika Remote Management System (RMS)

IoT PLATFORMSCloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICSCPU
Mediatek, 580 MHz, MIPS 24KEc

RAM
128 MB, DDR2

FLASH memory
16 MB SPI Flash

FIRMWARE / CONFIGURATIONWEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA
Update FW

RMS
Update FW/configuration for multiple devices

Keep settings
Update FW without losing current configuration

FIRMWARE CUSTOMIZATIONOperating system
RutOS (OpenWrt based Linux OS)

Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager

Development tools
SDK package with build environment provided

LOCATION TRACKINGGNSS
GPS, GLONASS, BeiDou, Galileo and QZSS

Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS

NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

Server software
Supported server software TAVL, RMS

Geofencing
Configurable multiple geofence zones

SERIALRS232
DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate

RS485
RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate

Serial functions
Console, Serial over IP, Modem

USBData rate
USB 2.0

Applications
Samba share, USB-to-serial

External devices
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

Storage formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

INPUT/OUTPUTInput
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Output
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Events
Email, RMS, SMS

I/O juggler
Allows to set certain I/O conditions to initiate event

POWERConnector
4 pin industrial DC power socket

Input voltage range
9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection 31 VDC 10us max

PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

Power consumption

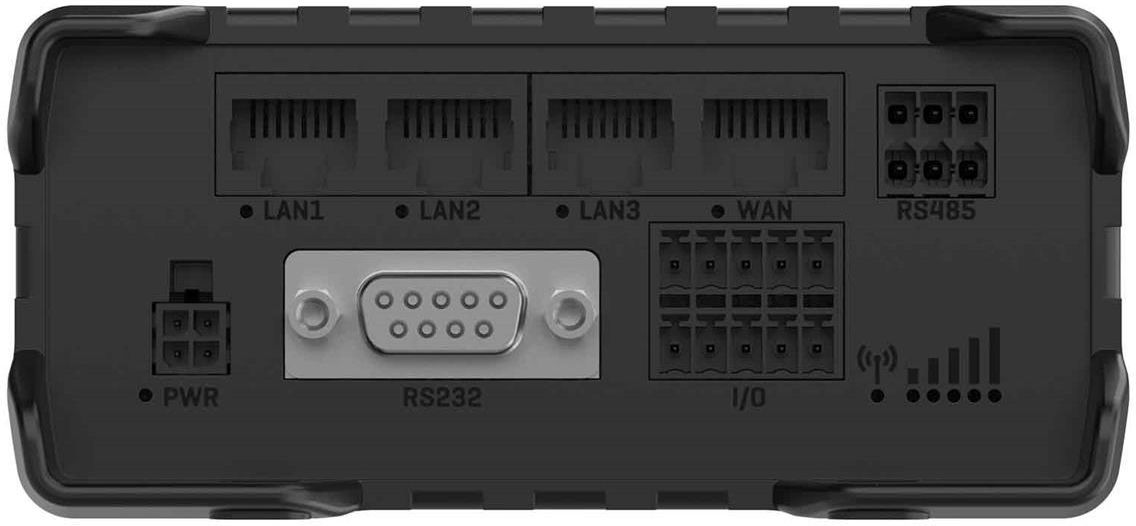

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)Ethernet
4 x RJ45 ports, 10/100 Mbps

I/O’s
2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector

Status LEDs
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

Power
1 x 4-pin power connector

Input/output
1 x 10-pin industrial socket for inputs/outputs

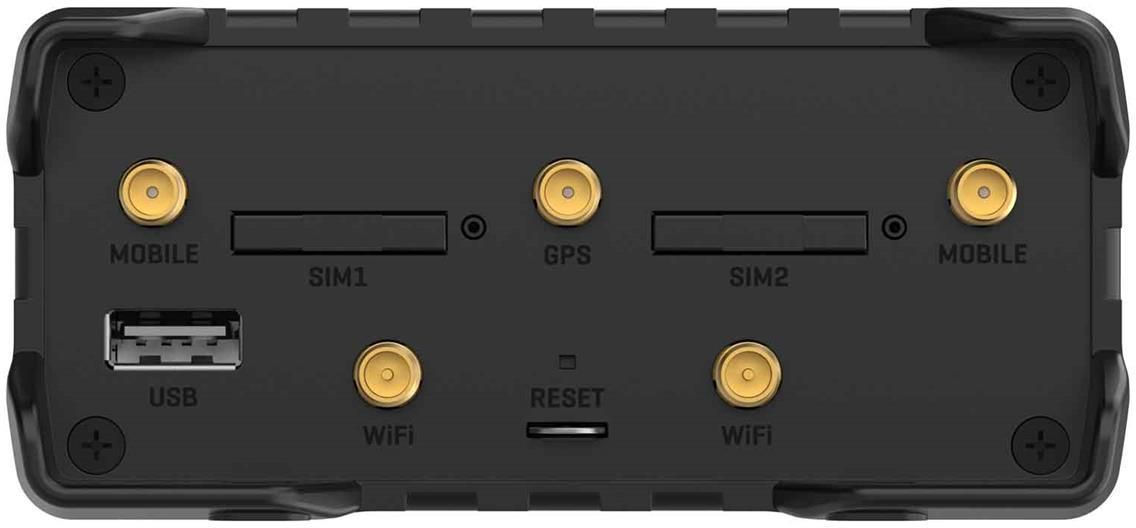

Antennas
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

RS232
1 x DB9 socket

RS4851 x 6-pin industrial socket

USB
1 x USB A port for external devices

Antennas
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

Reset
Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATIONCasing material
Aluminium housing, plastic panels

Dimensions
109.5 x 50 x 100 mm

Weight
295 g

Mounting options
DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENTOperating temperature
-40 °C to 75 °C

Operating humidity
10% to 90% non-condensing

Ingress Protection Rating
IP30

MTBF
270000 h

REGULATORY & TYPE APPROVALSRegulatory
CE, UKCA, RCM, CB, E-mark
