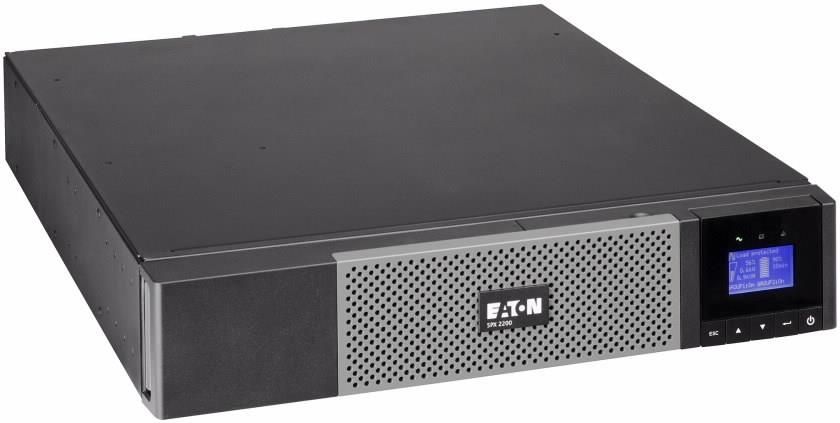

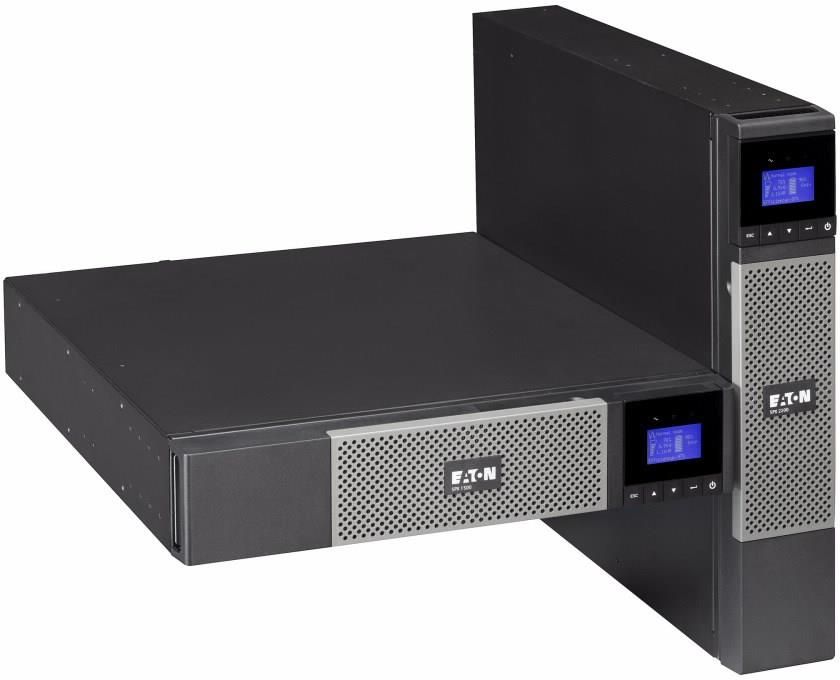

Eaton 5PX 1500i RT2U (5PX1500iRT)

Eaton 5PX 1500i RT2U (5PX1500iRT) - Opis

Eaton 5PX1500IRT2UG2, Line-Interactive, 1500 kVA, 1500 W, Pure sine, 160 V, 294 V

Line-Interactive - 1500VA / 1500W - 8 x IEC C13 Out - LCD - Rack/tower - 2U
Group Power Supply
Manufacturer Eaton
Manufacturer item no. 5PX1500IRT2UG2
EAN/UPC 0743172104861

Description

Exceptional efficiency, manageability and energy metering capabilities for IT managersPerformance and efficiency- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

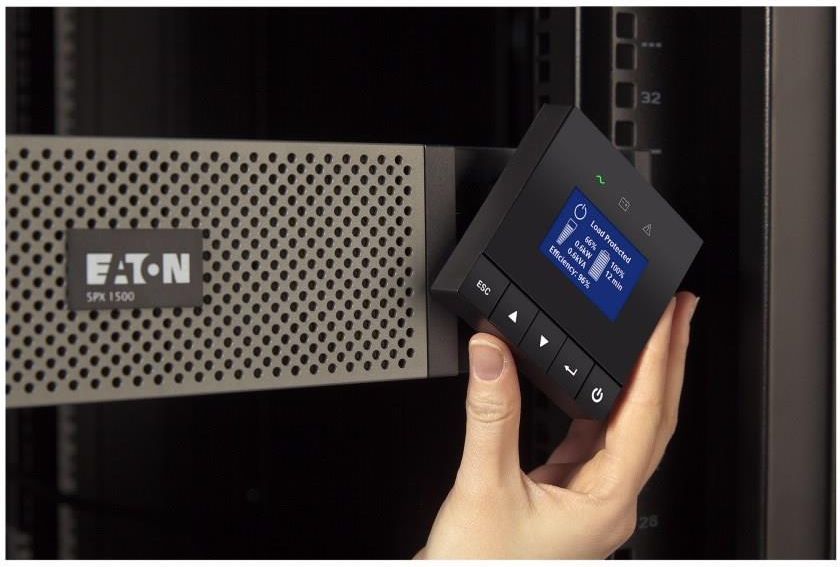

Management and Cybersecurity- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 (...) więcej meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

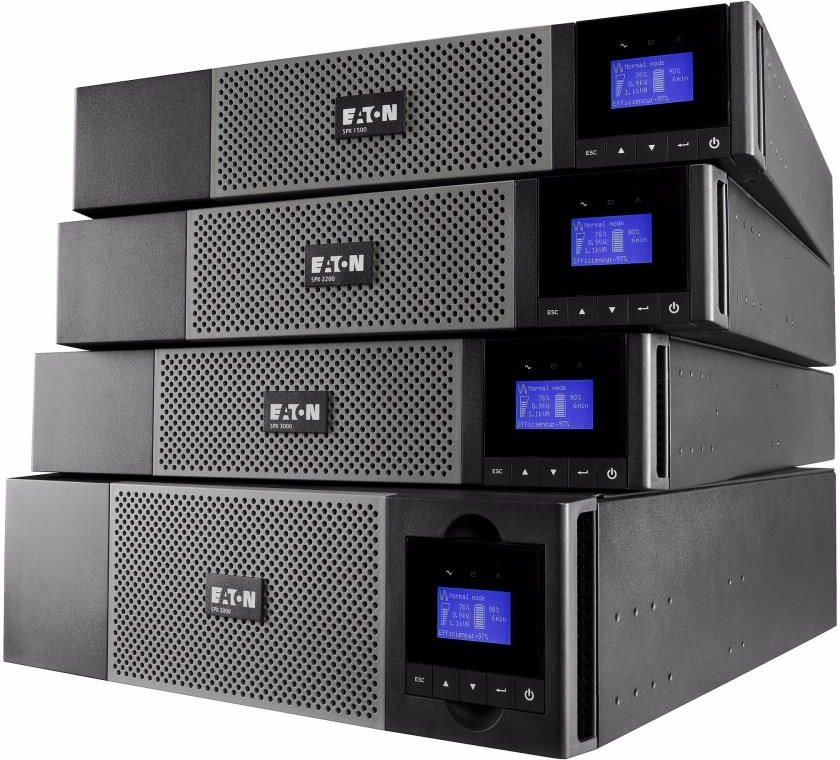

Availability and flexibility- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.

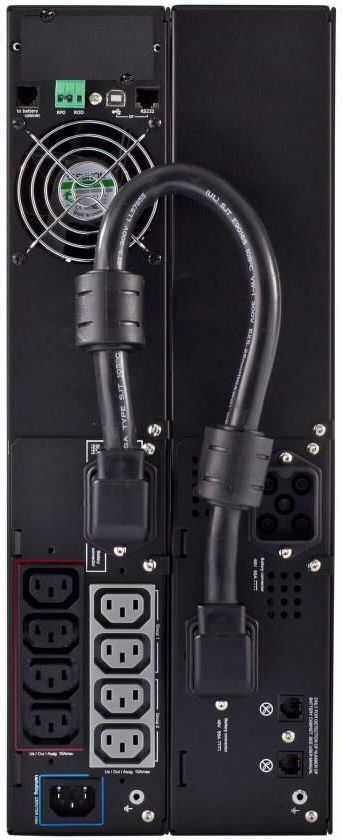

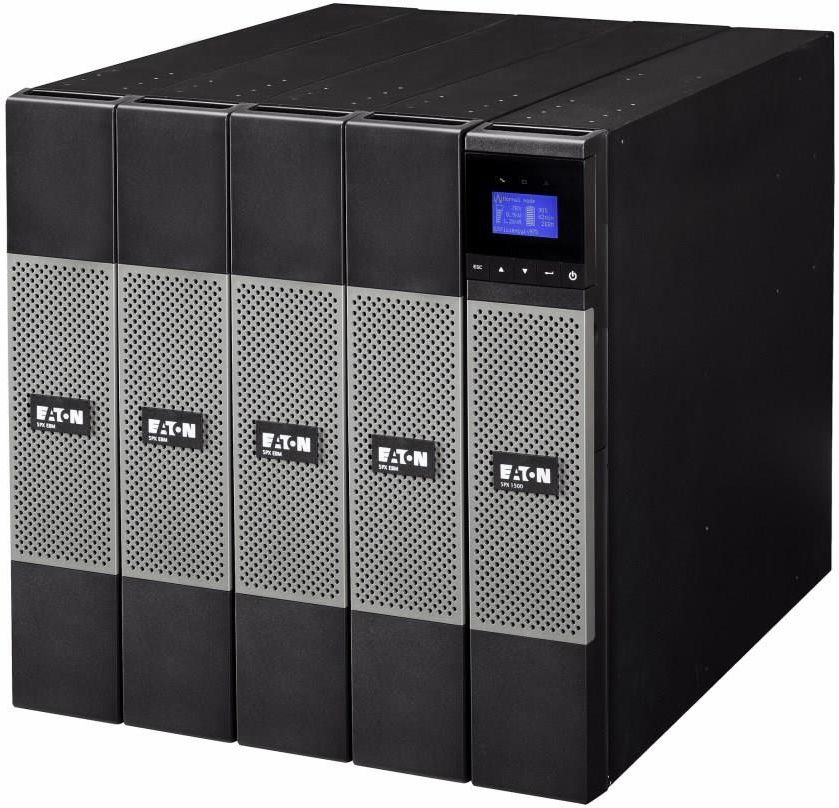

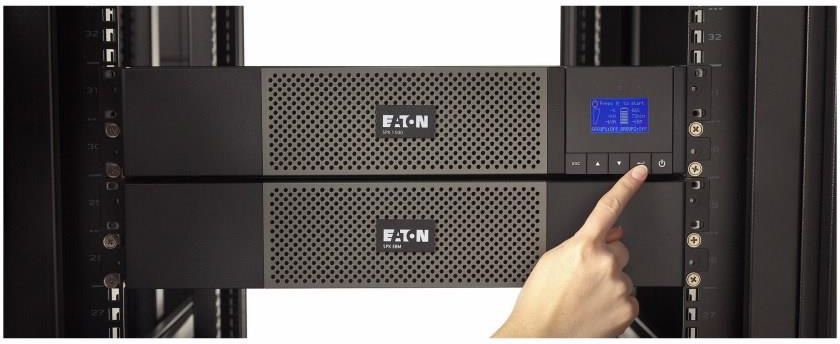

- Up to 4 external hot-swappable battery modules can be added for longer power availability.

Main features
General
UPS topology Line-Interactive
Output power 1500 W
Output power capacity 1500 kVA

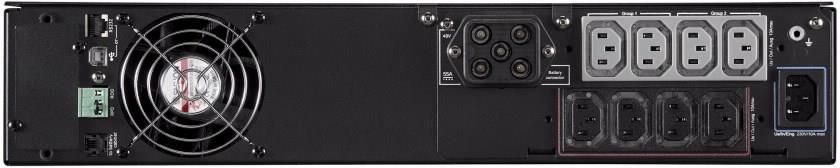

AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 8 AC outlet(s)

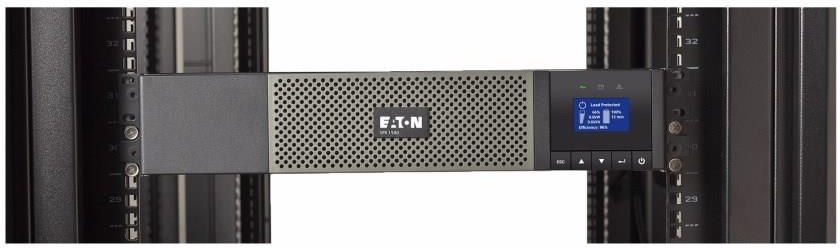

Form factor Rackmount/Tower
Product colour Black
Rack capacity 2U
Width 438 mm
Depth 448 mm
Height 85.5 mm
Nominal output voltage 230 V
